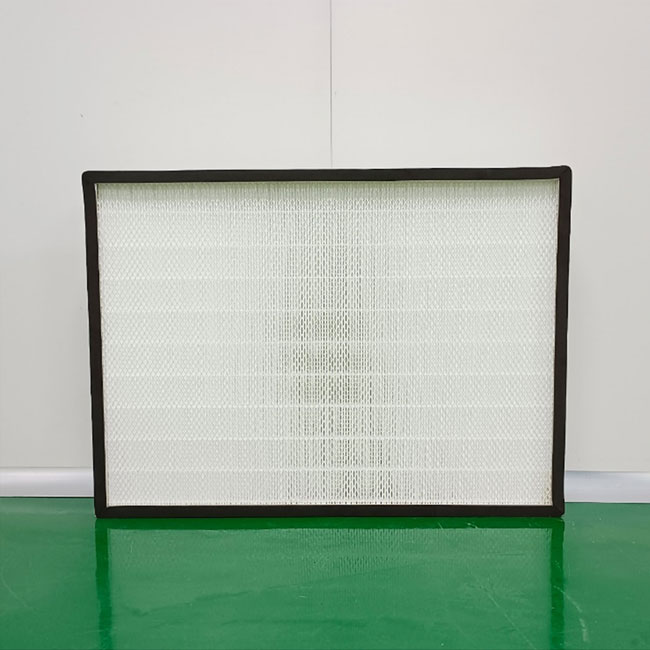

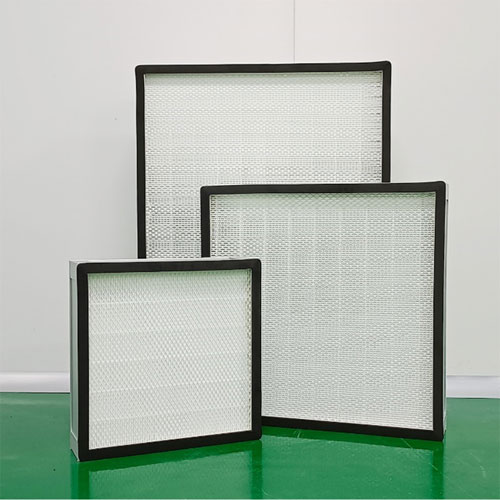

The high-efficiency filter without partition features an aluminum alloy or galvanized frame, glass fiber filter paper as the filter material, filtering airborne particles below 0.3 microns, polyurethane sealing adhesive to prevent leakage, hot melt adhesive as the divider, and white silver mesh spraying for protection. It serves as the terminal filter for various filtration systems.
Product Features
High filtration efficiency, low resistance, high dust-holding capacity, and even airflow.Fine filtration ensures a high level of environmental cleanliness.
|
Frame |
Aluminium alloy /Galvanized /Stainlesss steel |
|
Media |
GlassFiber Paper |
|
StructureFold |
Folded Filter |
|
Dimension |
According to customers' requirements |
|
Maximum temperature |
80ºC |
|
Maximum relative humidity |
≤80% |
|
Fiber class according to EN779 |
H13 H14 |
|
Certification |
ISO9001, En779 |
Production Technology
|
Nominal Size inches |
Actual Size mm |
Rated Airflowm³/s |
Initial Pressure Pa |
Final PressurePa |
Filter Object um |
Filtration class
|
|
12.6*12.6*3.5 |
320*320*90 |
500 |
110 |
400-500 |
≤0.5 |
H13H14 |
|
19*19*3.5 |
484*484*90 |
1000 |
110 |
400-500 |
≤0.5 |
H13H14 |
|
24*24*3.5 |
610*610*90 |
1500 |
110 |
400-500 |
≤0.5 |
H13H14 |
|
24.8*24.8*3.5 |
630*630*90 |
2000 |
110 |
400-500 |
≤0.5 |
H13H14 |
APPLICATION
1. Suitable for terminal filtration in environments such as hospital laminar flow clean air conditioning.2. It is mainly used for intermediate or terminal filtration in high air volume purification air conditioning systems.
