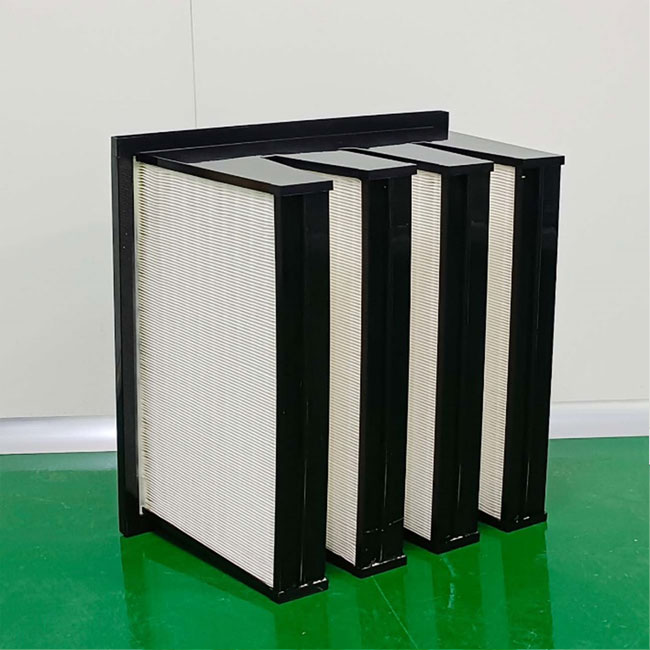

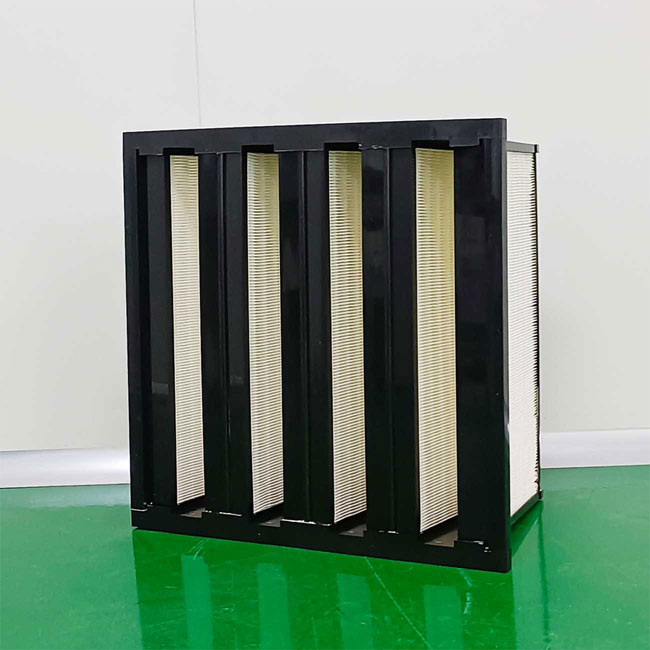

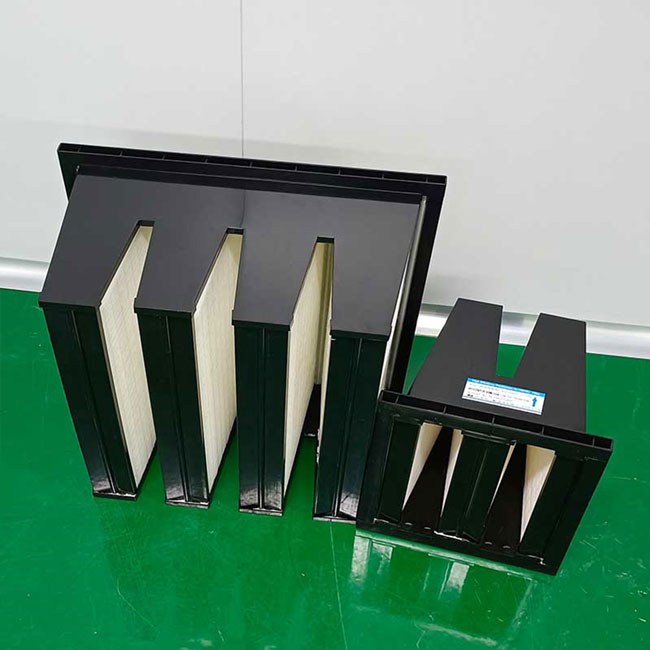

The pleated air filter has the same structure, but different filter materials result in different filtration levels, including medium-efficiency, sub-high-efficiency, and high-efficiency, which are classified as follows: synthetic fiber F7, F8, F9, H10, and glass fiber F6, F7, F8, F9, H10.It primarily uses glass fiber filter paper or synthetic fiber filter paper with a plastic W-type frame.
Product Features
Large air volume, low resistance, large dust capacity. High absorption, Environmental health and lasting longevity.Large filtration area, small footprint, making air conditioning structural design more compact.
|
Frame |
Aluminum alloy / Plastic |
|
Media |
Glass Fiber Filter Paper/PP/PTFE |
|
Structure |
V-Bank |
|
Dimension |
According to customers' requirements |
|
Maximum temperature |
80ºC |
|
Maximum relative humidity |
≤80% |
|
Fiber class according to EN779 |
F7~H10 |
|
Certification |
ISO9001, En779 |
Production Technology
|
Nominal Size inches |
Actual Size mm |
Box Qty pcs |
Filtration Area m³ |
Rated Airflowm³ /s |
Initial Pressure Pa |
Final Pressure Pa |
Filter Object um |
Filtration class |
|
12*24*12 |
289*595*292 |
4 |
17.5 |
1600 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
20*24*12 |
495*595*292 |
4 |
29.9 |
2700 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
24*24*12 |
595*595*292 |
4 |
36.1 |
3200 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
12*20*12 |
289*495*292 |
3 |
13.1 |
1300 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
20*20*12 |
495*495*292 |
3 |
22.5 |
2200 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
24*20*12 |
595*495*292 |
3 |
27.1 |
2700 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
12*12*12 |
289*289*292 |
2 |
8.8 |
800 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
20*12*12 |
495*289*292 |
2 |
14.9 |
1300 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
|
24*12*12 |
595*289*292 |
2 |
18.1 |
1600 |
≤120 |
324 |
0.5 |
F7, F8, F9, H10 |
APPLICATION
1. Suitable for medium to high-efficiency filtration in high air volume HVAC systems.2. It is mainly used for intermediate or terminal filtration in high air volume purification air conditioning systems and is well-suited for high airspeed systems, variable airflow systems, and systems operating in high-humidity corrosive environments.
