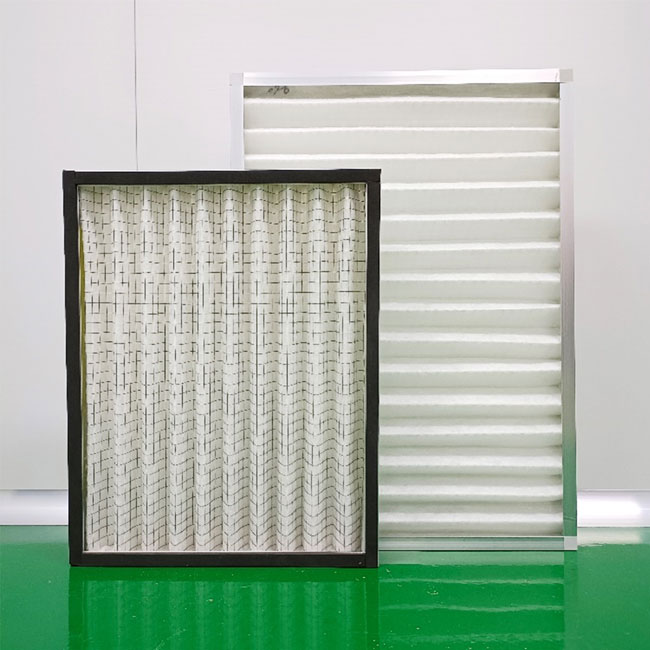

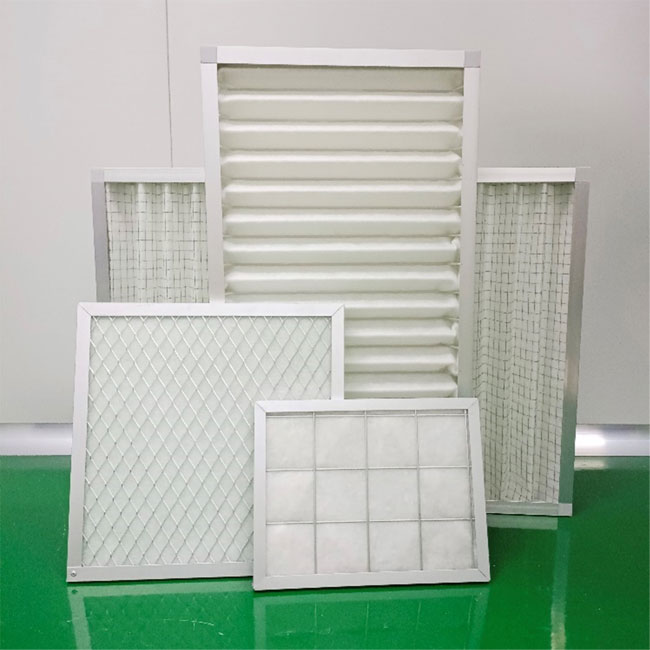

The frame is made of aluminum alloy or galvanized frame, with a removable design for easy filter replacement, and the original frame can be reused.
It uses filter materials such as non-woven fabric, nylon mesh, fiberglass, synthetic fibers, with a metal wire composite or embedded metal skeleton or double-sided wire frame to create a panel structure, preventing deformation due to excessive wind pressure.
The skeleton filter material is distributed evenly, with a complex manufacturing process.
The frame allows for convenient filter core replacement and has a simple construction.
Product Features
The original frame can be reused, saving costs.Good dust resistance, high dust collection efficiency, easy installation.High airflow, low resistance, can be repeatedly cleaned, and has a long service life.
|
Frame |
Aluminum alloy /Galvanized steel/Stainless steel |
|
Media |
Polyester synthetic fiber |
|
Structure |
Panel /Pleated |
|
Dimension |
According to customers' requirements |
|
Maximum temperature |
98ºC |
|
Maximum relative humidity |
≤100% |
|
Fiber class according to EN779 |
G4 particles ≥ 5microns |
|
Certification |
ISO9001, En779 |
|
Filter Efficiency |
80-95% (Arrestance) |
Production Technology
|
Nominal Size inches |
Actual Size mm |
Rated Airflowm³ /s |
Initial Pressure Pa |
Final Pressure Pa |
Filter Object um |
Filtration class |
|
12*24*2 |
295*595*46 |
1600 |
<40 |
≤250 |
≥5 |
G4 |
|
20*20*2 |
495*495*46 |
2200 |
<40 |
≤250 |
≥5 |
G4 |
|
20*24*2 |
495*595*46 |
2700 |
<40 |
≤250 |
≥5 |
G4 |
|
24*24*2 |
595*595*46 |
3200 |
<40 |
≤250 |
≥5 |
G4 |
APPLIATION
1. Primary filtration of dust in constant temperature and humidity room, data center room and other Internet room
2. Primary filtration of clean room, operating room and other purification system
3. Primary filtration of ventilation systems such as purification workshops and air conditioning units.
It is widely used in coating, surface treatment, chemical, cosmetics, hospital, automobile and other industries.
